A customer with a roof antenna gets most channels, but two or three stations break up or never scan, and the question lands on the installer: do I need an antenna rotor, or is there a better fix? A rotor turns a directional antenna to face each transmitter, which sounds like the obvious answer. In practice it suits a narrower set of jobs than customers expect, and a fixed design often serves them better day to day.
Do I need an antenna rotor?
You need an antenna rotor only when the stations you want sit in clearly different directions, beyond the beamwidth of a directional antenna, and are too weak to pick up off its side. If all towers are within a narrow arc, aim a fixed antenna once. If they fall into two directions, two antennas and a combiner usually work better.
What an antenna rotor does
A rotor is a motor drive that clamps to the mast, holds the antenna above it and turns it on command from a control unit indoors. It lets one high-gain directional antenna face north for one market and east for another without a trip up the ladder. The FCC’s consumer guide on antennas and digital television notes that a rotor that re-orients the antenna can improve performance, particularly for stations that transmit from different locations.
Bursma’s antenna rotors and remote control rotor systems category lists two units: the BUATDP2 antenna rotor and the CM59521 remote control rotor system. Both suit residential TV antennas on a mast; check each listing for load and control details before quoting.
Signs a fixed antenna is enough
Most metro and suburban jobs never need a rotor. Many markets put their transmitters on one or two towers in the same place, so a single fixed antenna sees them all. Digital tuners are also forgiving: a strong station can decode cleanly off the side or even the back of a directional antenna.
A fixed install is usually enough when:
- All wanted towers fall inside the beamwidth the antenna’s maker publishes.
- The stations outside that arc are strong enough to decode off-axis.
- The customer records shows on a DVR or network tuner and wants every channel available all the time.
Before deciding, rescan with the antenna aimed carefully. Moving it a few inches or a few degrees can change reception, and a better mast position or a correctly matched antenna preamplifier fixes many weak channels without any moving parts.

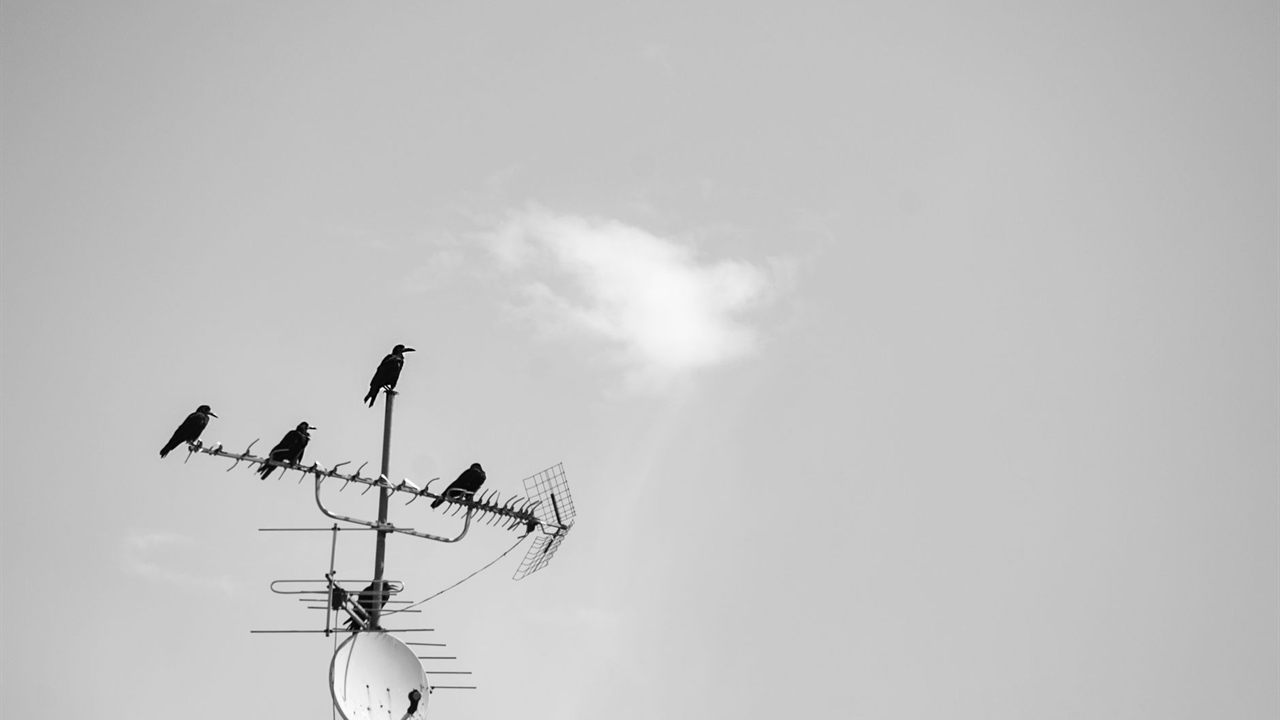

Directional TV antenna aiming: map the stations first
The decision is geometry. Run a reception report for the exact address, then list each wanted station with its compass bearing and predicted signal strength. Group the stations by direction and look at the spread between the groups.
- Note the bearing of every wanted station and its signal strength at the planned mounting height.
- Compare the spread with the antenna’s beamwidth. A long, high-gain yagi has a narrow beam; a compact antenna has a wider one.
- If one group covers every station, aim once and stop.
- If there are two groups far apart, compare a rotor with a second fixed antenna.
- If stations scatter across three or more directions and are weak, a rotor becomes the practical choice.
Fringe locations change the math. Weak signals leave no margin for off-axis reception, so the antenna has to face each tower squarely. That is where rotors earn their place, especially when two markets carry different local news or sports.
Rotor vs fixed antenna vs two antennas
There are four common ways to cover stations in more than one direction. The right one depends on how far apart the towers are, how strong they are, and how the customer watches TV.
| Setup | Best fit | Main drawback |
|---|---|---|
| Single fixed directional antenna | Towers within a narrow arc | Misses weak stations off the beam |
| Directional antenna on a rotor | Weak stations scattered in three or more directions | One direction at a time; DVR recordings can miss |
| Two fixed antennas plus a combiner | Two clear station groups | Combining can cause interference if both antennas see the same channel |
| Multidirectional or wide-beam antenna | Strong stations around the house | Lower gain, poor in fringe areas |

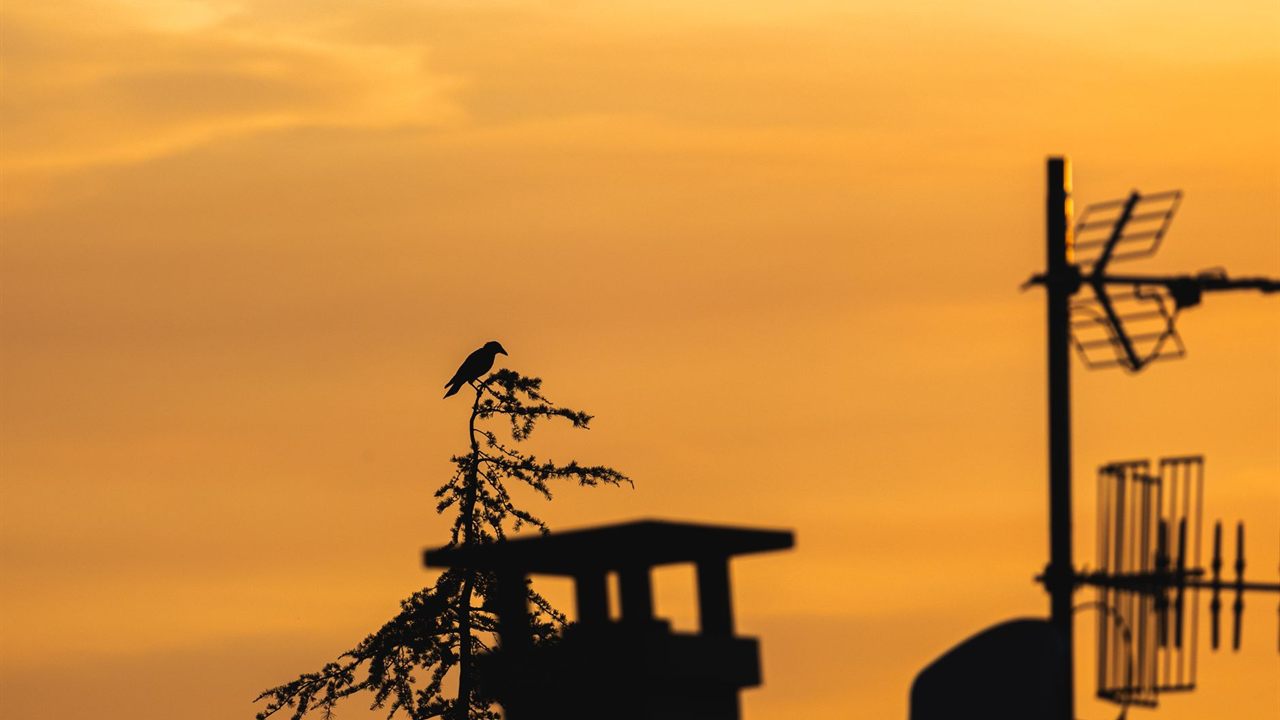

Two antennas on one mast, fed through a combiner, give the customer every station at once with nothing to turn. The catch is that combining two antennas that both receive the same channel from different directions can cause multipath trouble, so the groups need to be well separated. Our outdoor TV antennas category covers both long-range directional and multidirectional designs.
The DVR and network tuner problem
A rotor serves one direction at a time, and that clashes with how many households now watch. A scheduled recording on a station to the east will fail if the antenna was left pointing north after last night’s game. Many network tuners and DVRs cannot drive a rotor at all, so nobody turns it before the recording starts.
Ask how the family watches before you quote. If they record heavily or stream around the house, steer them toward fixed antennas. If one person watches live and enjoys picking up distant stations, a rotor with a simple remote control unit works well. The trade-offs between antenna placements are covered in our indoor vs outdoor TV antenna guide.
Antenna rotor installation checklist
A rotor adds load, wind area and another cable to the job, so plan the structure around it.
- Mast and mount: the rotor sits on the mast with a short stub above it for the antenna. Use a mast and mount rated for the extra weight and wind load; our guide to roof tripod vs antenna mast mounting covers the choice, and the antenna mast category lists the sections.
- Thrust bearing: on a tower or a long mast, a thrust bearing above the rotor carries the vertical load so the motor only turns it.
- Control cable: run the rotor cable the manufacturer specifies alongside the coax, with drip loops at both entries.
- Coax loop: leave enough slack at the rotor for a full turn so the coax never pulls tight.
- Preamp: mount it on the stub mast with the antenna so it turns with it.
- Grounding: bond the mast and the coax to the grounding system, and protect the control cable too. See how to ground a TV antenna and mast.
Set the control unit’s north reference during installation and show the customer how to use the presets. A rotor that nobody understands gets left in one position for years.
Where to buy rotors and antenna parts
Rotors, antennas, preamps, masts, tripods and coax all sit under the Antenna - Tower - Satellite division. Bursma Distributing has sold wholesale to dealers, installers and integrators since 1947, and dealers see their own pricing and stock in Shop Online after logging in.
New installers can open a Bursma dealer account by faxing the dealer application to 616-350-9353. West Michigan dealers can call the Grand Rapids area low-voltage branch in Wyoming at 616-831-0080.
Frequently asked questions
Is an antenna rotor worth it for digital TV?
Only in some locations. If the towers are grouped in one direction, a fixed antenna is simpler and more reliable. A rotor is worth it when weak stations are spread across several directions and the viewer watches live rather than recording.
Can I use two antennas instead of a rotor?
Yes, when the stations fall into two clear groups. Aim one antenna at each group and join them with a combiner. Keep the groups well apart so both antennas do not pick up the same channel.
Do I need to rescan channels after turning the antenna?
Often, yes. Many tuners only keep channels found in the last scan, so add stations from each direction with a manual scan or an add-channels feature, if the TV offers one.
Will a rotor work with a DVR?
Many DVRs and network tuners cannot control a rotor, so recordings fail if the antenna points the wrong way. For heavy recorders, fixed antennas are the safer choice.
